Member Design - Steel BeamColumn BS5950.xls

(4/11)

Description


BS 5950 is the British Standard for the design, fabrication and erection of structural steelwork. It does not apply to bridges, which are covered by BS 5400. BS 5950 replaced BS 449, which used a permissible stress approach, and uses limit state design methods. It is written for use in the UK but can be used worldwide. This workbook includes the following:

Worksheet - UB Plate Girder
Verification
1 Section Properties
2 Weld Design

Worksheet - RHS Plate Girder
Verification
1 Section Properties
2 Weld Design

Worksheet - Solid Bar
Verification
1 Section Properties

Worksheet - Plate
Verification
1 Section Properties

Note SDM stands for Steel Designers' Manual

Calculation Reference
BS 5950 Steel Design

Structural Steelwork

Steel Designers Manual

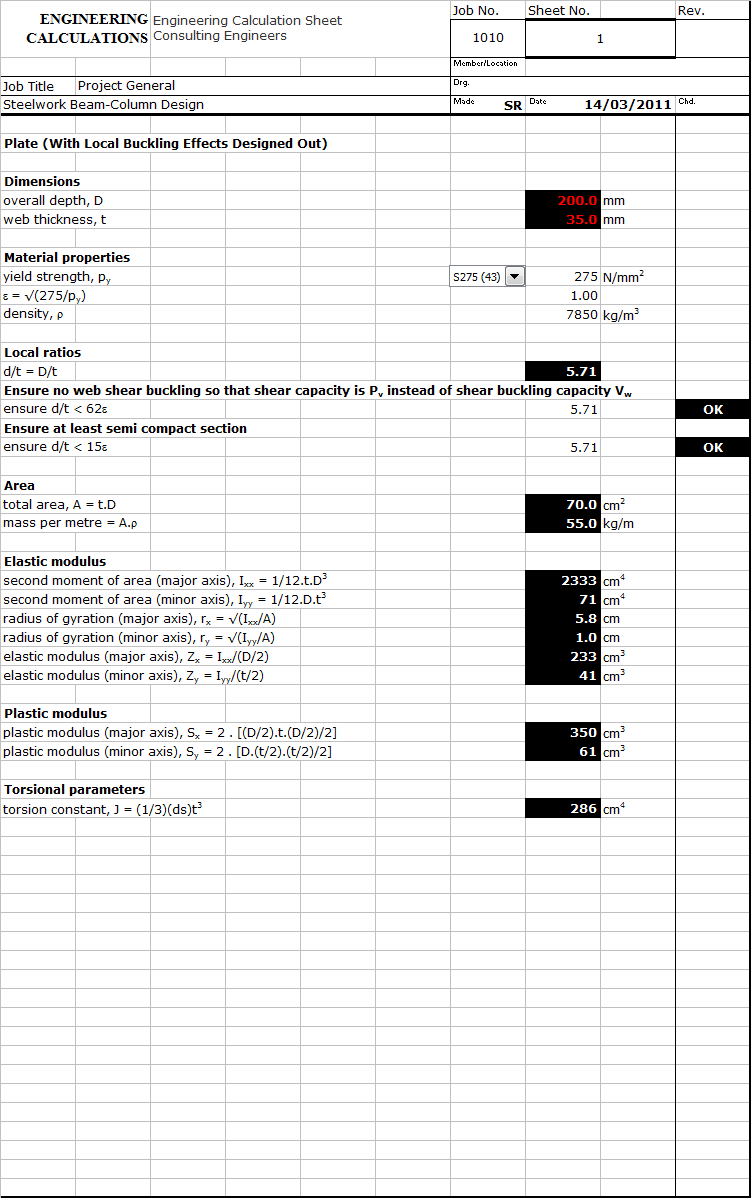

Calculation Preview

17 Mar 2011
File Size: 2,067.50 Kb
Downloads: 116
File Version: 1.0
File Author: Sreejit
File Rating (4/11)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
