CurvedBeams.xls
![](/components/com_remository_files/file_image_321/img_321_01.png)
Description
Calculate hyperbolic bending stress distribution in a curved beam. The beam theory can also be applied to curved beams allowing the stress to be determined for shapes including crane hooks and rings. When the dimensions of the cross section are small compared to the radius of curvature of the longitudonal axis the bending theory can be relatively accurate. When this is not the case even using the modified Bernoulli-Euler only provides approximate solutions.
Calculation Reference
Machine Design - Schaum's

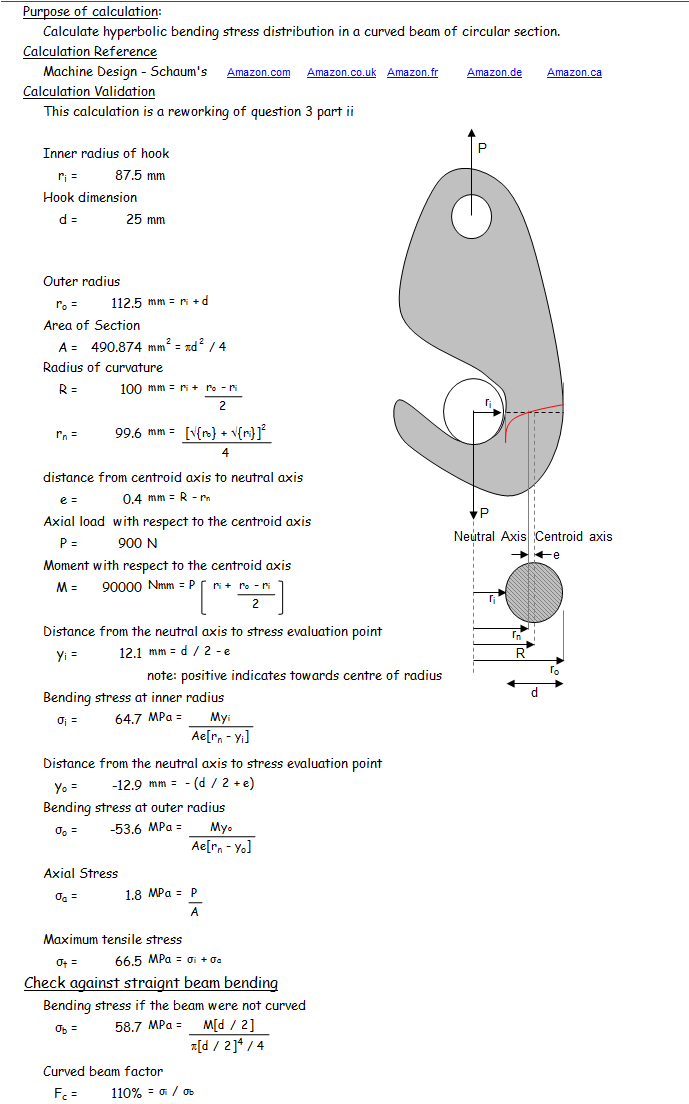

Calculation Preview
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
