EC3 Calculations.xls

Rating:
10

Description


Assessment of hollow circular section under load to the requirements of Eurocode3. The following code checks are performed:
EC3 5.4.4 (1) D:C ratio axial force
EC3 5.4.5.1 (1) bending stress D:C ratio
EC3 5.4.8.2 (1) axial and bending stress D:C ratio
EC3 5.4.6 (1) Shear Load D:C ratio
EC3 5.5.1.2 (1) Axial Buckling D:C
EC3 5.5.4 D:C Buckling under axial and bending force D:C

Calculation Reference
Eurocode 3

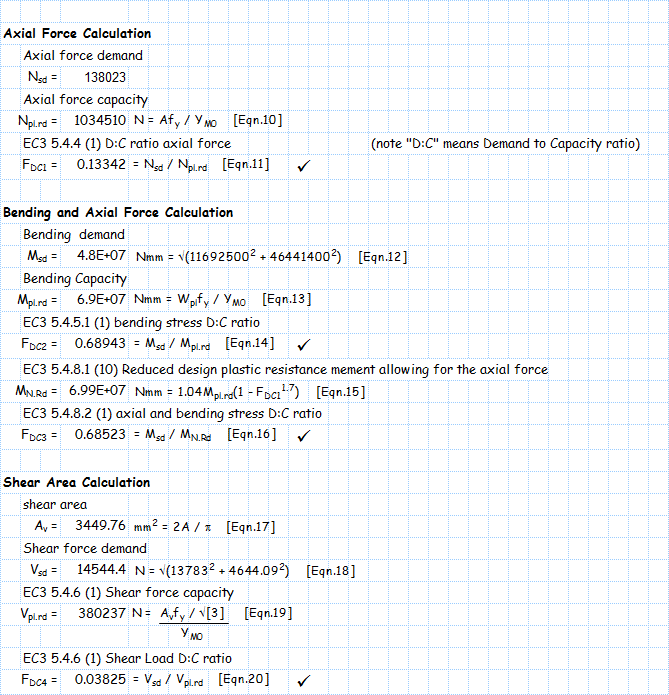

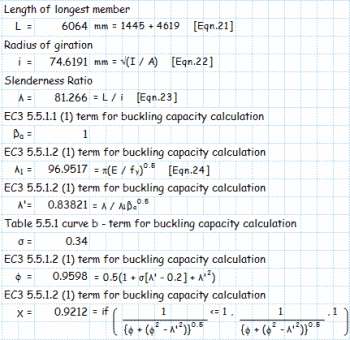

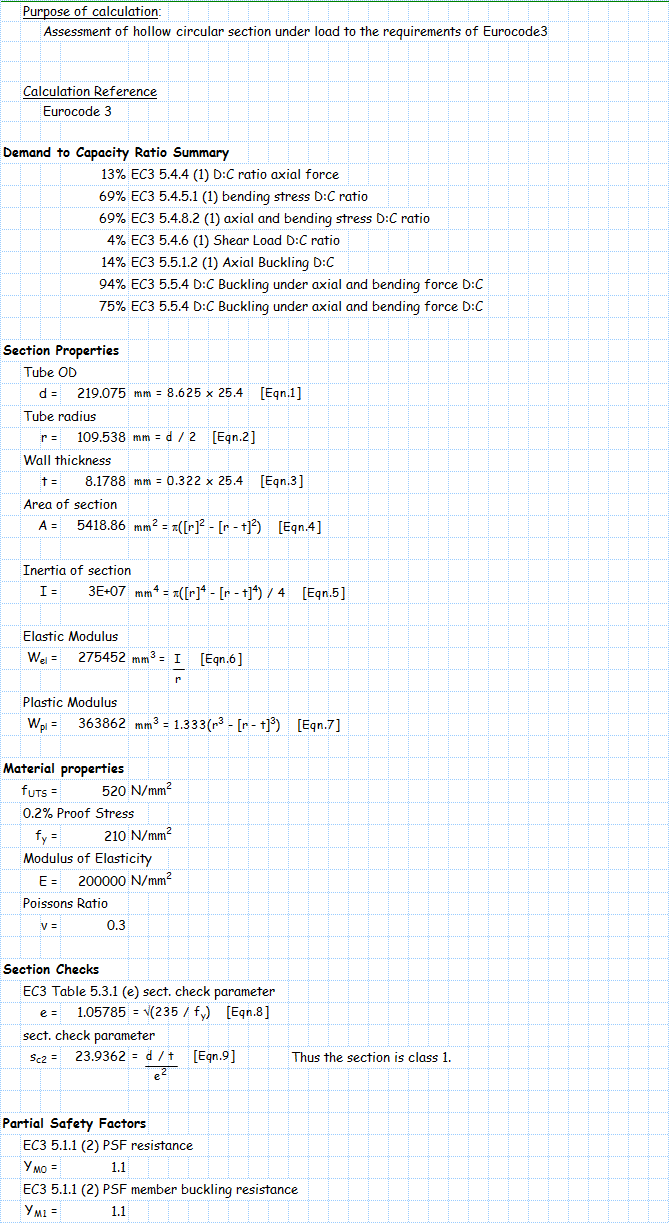

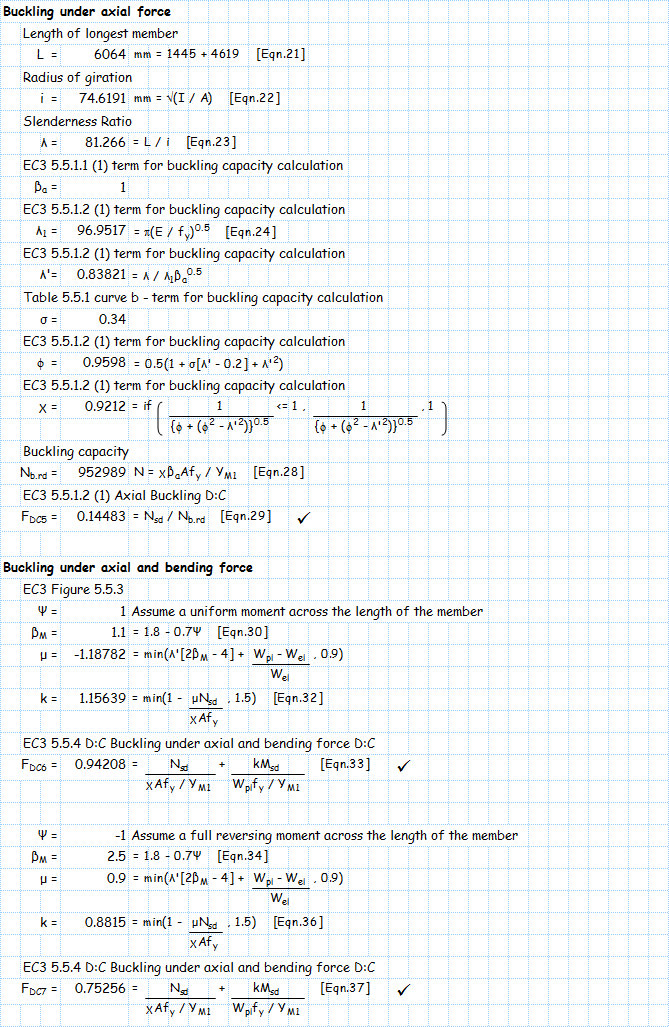

Calculation Preview

Uploaded
09 Dec 2007
Last Modified
28 Aug 2009
File Size:
126.00 Kb
Downloads:
540
File Version:
1.0
Rating:
10


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
